Structural Shear Walls with Architectural Finish
Structure and finished façade, combined.
Using precast shear wall panels in lieu of a traditional cast-in-place concrete shear wall with separate precast cladding can offer major advantages in cost, schedule, efficiency, and overall building design. Rather than constructing a structural concrete wall first and then attaching architectural precast cladding through pockets or embeds, a precast shear wall panel can often serve as both the structural wall and the finished exterior surface in one integrated system.
This approach simplifies the building envelope and creates meaningful value for owners, consultants, and contractors alike.
Benefits of Using Precast Shear Wall Panels in Place of Cast-in-Place Concrete Shear Walls with Precast Cladding
01 More usable interior space
One of the biggest advantages of using precast shear wall panels is the potential to create more usable interior floor area. In a traditional wall assembly, the cast-in-place concrete shear wall is located inside the building line, with the architectural cladding installed outside of it. This creates a thicker overall wall build-up and pushes the usable interior space inward.
With a precast shear wall panel, the structural wall and exterior finished face can be combined into one system. This can allow the building envelope to be pushed outward by the thickness otherwise occupied by the cast-in-place shear wall, helping maximize the building footprint and recover valuable square footage for the owner. Across multiple floors, even a modest dimensional gain can translate into significant additional usable area and long-term value.
02 Reduced overall wall thickness
By combining structure and exterior finish into one panel, the wall assembly becomes more efficient. There is no need for a separate structural concrete wall, separate cladding support system, pocket coordination, or additional installation depth for the façade. A more streamlined wall build-up can reduce congestion and simplify the interface between structure and enclosure.
03 Lower construction cost
A precast shear wall system can often reduce overall construction cost by eliminating several separate scopes of work. Instead of forming, reinforcing, pouring, curing, and finishing a cast-in-place wall and then returning later to install precast cladding, the project can use one prefabricated panel system to perform both functions.
​
This can reduce:
-
cast-in-place forming and shoring costs
-
site labour requirements
-
separate façade attachment and pocket detailing
-
coordination between multiple trades
-
installation time and field adjustments
Because the panel arrives ready to install, there is also less dependence on extended on-site concrete operations and less risk of delays related to site conditions, weather, and curing.
04 Faster construction schedule
Precast shear wall panels are manufactured off site while other site work and foundations are progressing. This overlap between fabrication and site preparation can accelerate the project schedule compared to a traditional cast-in-place wall followed by a separate cladding phase.
​
Once delivered, panels can be erected quickly, allowing the structure and building envelope to advance faster. This can help the project get enclosed sooner, improve access for interior trades, and reduce overall construction duration.
05 Improved quality control
Because precast panels are manufactured in a controlled plant environment, they benefit from consistent production conditions, tighter quality control, and improved finish uniformity. This can provide better dimensional accuracy, more reliable surface quality, and a higher degree of consistency than systems relying heavily on site-cast concrete and follow-up cladding installation.
06 Simplified coordination
Traditional concrete shear wall and cladding assemblies require careful coordination of embeds, pockets, tolerances, and installation sequencing between the structural concrete trade and the precast cladding trade. Any misalignment in the concrete wall can affect the cladding installation, often leading to additional field work, adjustments, or delays.
​
Using a precast shear wall panel reduces these interfaces and simplifies coordination by combining structural and architectural functions into a single system.
07 Reduced site disruption
A precast solution can help minimize site congestion by reducing the number of trades working on the wall assembly and cutting down on formwork, scaffolding, wet concrete operations, and follow-up cladding installation. This can be especially beneficial on tight urban sites where access, staging, and sequencing are critical.
08 Durable structural and architectural solution
Precast shear wall panels provide both structural performance and a durable finished exterior. In many applications, this results in a long-lasting wall assembly that offers strength, resilience, and low maintenance, while also delivering the architectural appearance required by the design.
09 Better value over the life of the building
For owners, the benefit is not only in initial construction savings, but also in maximizing rentable or usable floor area, reducing complexity, and achieving a durable, low-maintenance exterior. When multiplied over several stories, the increase in usable square footage alone can create meaningful long-term financial value.
​
For the right project, precast shear wall panels can provide a smarter, faster, and more efficient alternative to traditional concrete shear wall and cladding assemblies
Example

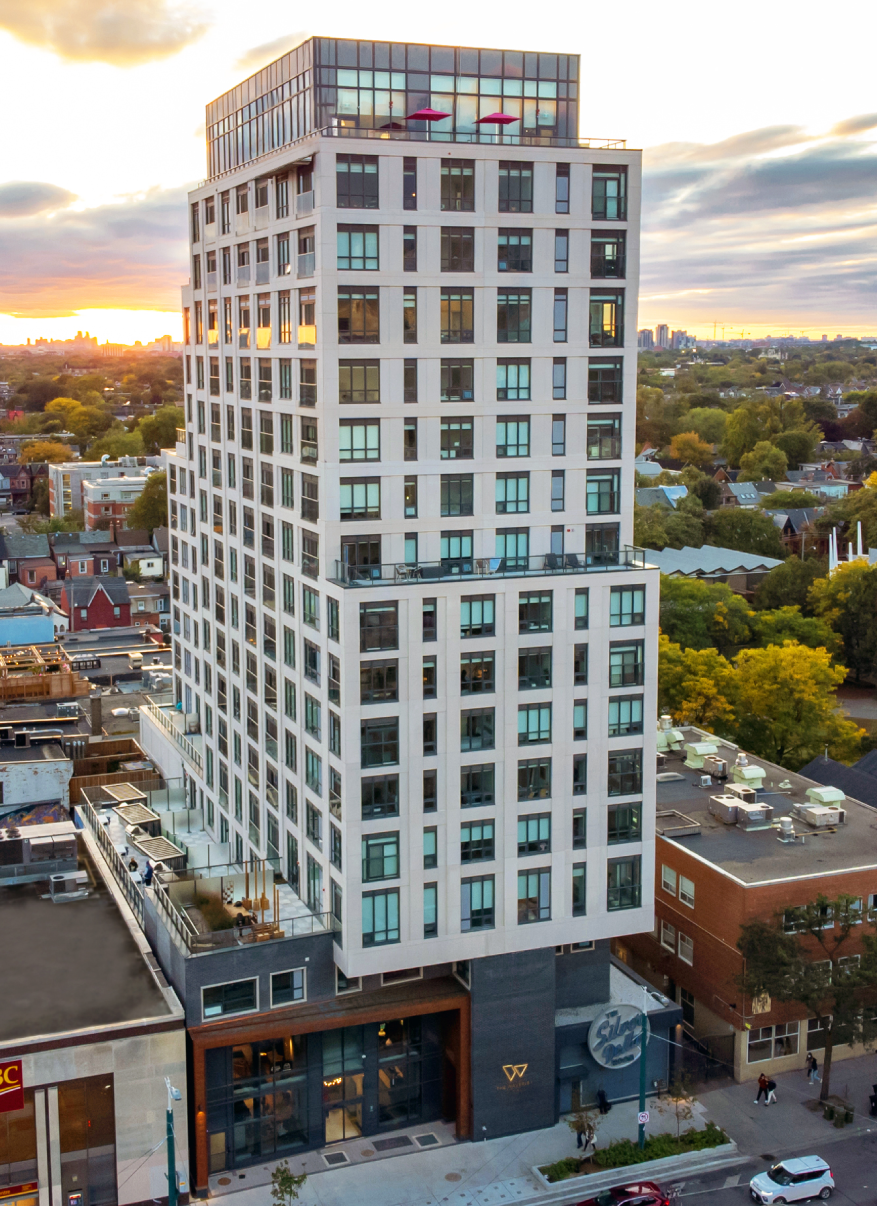

With neighbouring properties located only feet away, this project highlights one of the key advantages of TKL’s precast shear wall system. In tight site conditions where access is limited and exterior working space is at a premium, TKL was able to install structural shear wall panels with the architectural finish already incorporated into the precast. This avoided the need for a separate cast-in-place concrete wall and a secondary exterior cladding installation, reducing disruption to the adjacent property and simplifying the overall construction process. By combining structure and finished façade into one system, the project also benefited from increased usable floor area, allowing the building footprint to extend farther outward and adding valuable square footage for the owner.
TKL precast shear wall panels allowed this project to maximize floor area and complete installation in extremely tight conditions, with minimal impact on the adjacent property.
